Overview

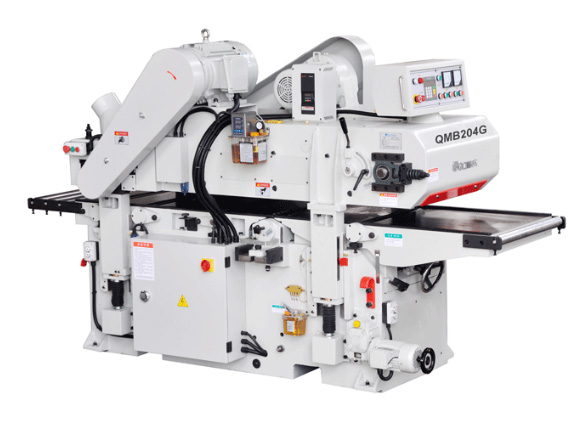

QMB204G Double-side Planer
Max. working width……………………………………………….445mm
Working thickness……………………………………………10~200mm
Min. working length……………………………………………… 310mm
Cutting depth top spindle………………………………………5mm
bottom spindle………………………………….3mm
Feeding speed(inverter)………………………………….5～25m/min
Spindle speed…………………………………………………..4800r/min
Cutting speed…………………………………………………………31m/s
Spindle dia…………………………………………………………φ125mm
Disposable blade size………………………………………..30*12*1.5
Dust outlet……………………………………………………………2-φ150
Total power………………………………………………………….16.8KW
Top cutter motor…………………………………………………….7.5kW
Bottom cutter motor……………………………………………….5.5kW
Feeding motor……………………………………………………….3.0kW
Lifting motor…………………………………………………………0.75kW
Overall dimension(L×W×H)…………………………283×94×178cm
Weight………………………………………………………………….2600kg
