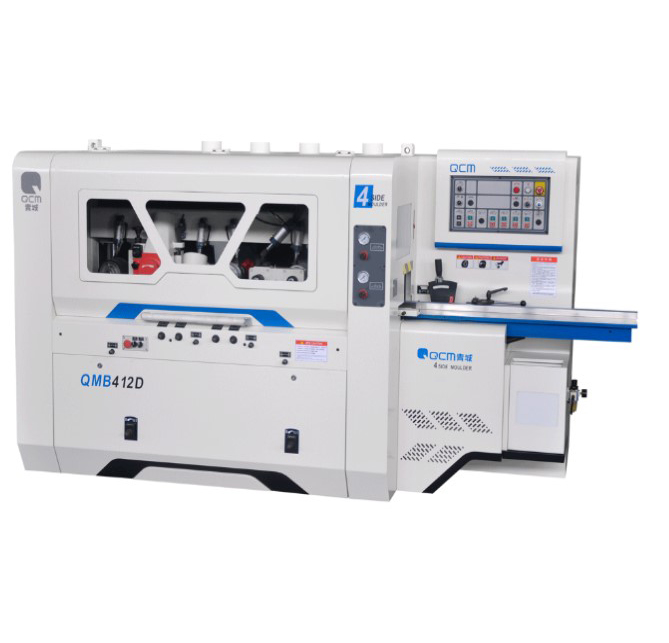

Overview
- Equipped with a fully closed safety cover, can effectively avoid the splashes of wood chips, reduce the noise of the working environment, with the advantages of beautiful appearance, low noise, safety and environmental protection.
Technical parameter
|
Item |
QMB412D |
|
|
Working width(cutterφ125) |
20~120mm |
|
|
Working thickness(cutterφ125) |
8~100mm |
|
|
Min. working length(single/next to each other) |
450mm/200mm |
|
|
Max. lifting of movable long infeed table |
6mm |
|
|
Max. movement of movable long guide fence |
6mm |
|
|
Spindle dia. |
φ40mm |
|
|
Upper feed wheel dia. |
φ140mm |
|
|
Feeding speed |
8~33m/min |
|
|
Front bottom spindle speed |
6800r/min |
|
|
The rest spindle speed |
8000r/min |
|
|
Cutter dia. |
Front bottom planing cutter/trimming |
φ125/φ152×12H |
|
Right/Left cutter |
φ115~φ140mm |
|
|
Top cutter |
φ105~φ140mm |
|
|
Total power 16.8KW |
Front bottom/right/left spindle |
Each 3kW |
|
Top spindle |
4kW |
|
|
Feeding motor |
3.0kW |
|
|
Beam lifting motor |
0.75kW |
|
|
Air supply pressure |
0.3~0.6MPa |
|
|
Dust outlet |
φ120mm×4 |
|
|
Air speed of collection system |
30~35m/s |
|
|
Air need of collection system |
120m3/min |
|
|
Dimension(L×W×H) |
296×145×166(cm) |
|
|
Weight |
2300kg |
|
