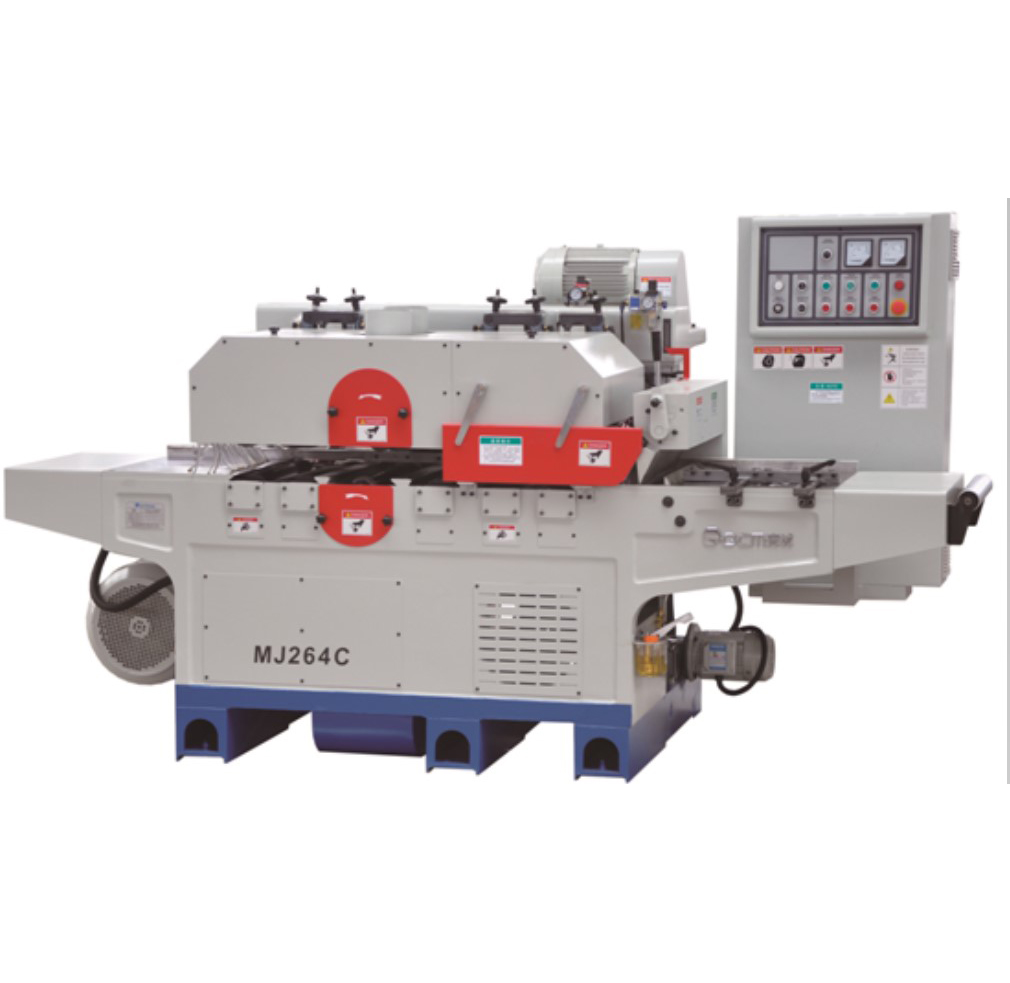

Solid wood machinery

Overview

Working thickness……………………………………………………………………40～70mm

Max. working width……………………………………………………………………….450mm

Min. working length………………………………………………………………………600mm

Feeding speed……………………………………………………………………….6～24m/min

Spindle dia…………………………………………………………………………………..φ60mm

       Spindle speed…………………………………………………………………………..4500r/min

Upper blade dia………………………………………………………………………….φ160mm

Bottom blade dia………………………………………………………………………..φ160mm

Total power………………………………………………………………………………..64.75kW

Top spindle motor(compression motor)………………………………………..30kW

Bottom spindle motor……………………………………………………………………30kW

Feeding motor………………………………………………………………………………4kW

Beam lifting motor……………………………………………………………………..0.75kW

Upper feeding wheel dia…………………………………………………………φ140×φ35mm

Dust outlet dia……………………………………………………………………………..φ140×4个

Table height……………………………………………………………………………………860mm

Dimension(L×W×H）………………………………………………………….285×158×162cm

Weight……………………………………………………………………………………………2800kg

1. The machine body(frame) is made of cast iron.

2. Equipped with anti-kick back fingers at the feed inlet, for operator safety.

3. Top and bottom spindles as a whole for manual lifting.

4. Feeding speed is controlled by frequency inverter.

5. For more details, please contact us.

Note:all above pictures and parameters are subject to the real product. We reserve the right to improve the product.
