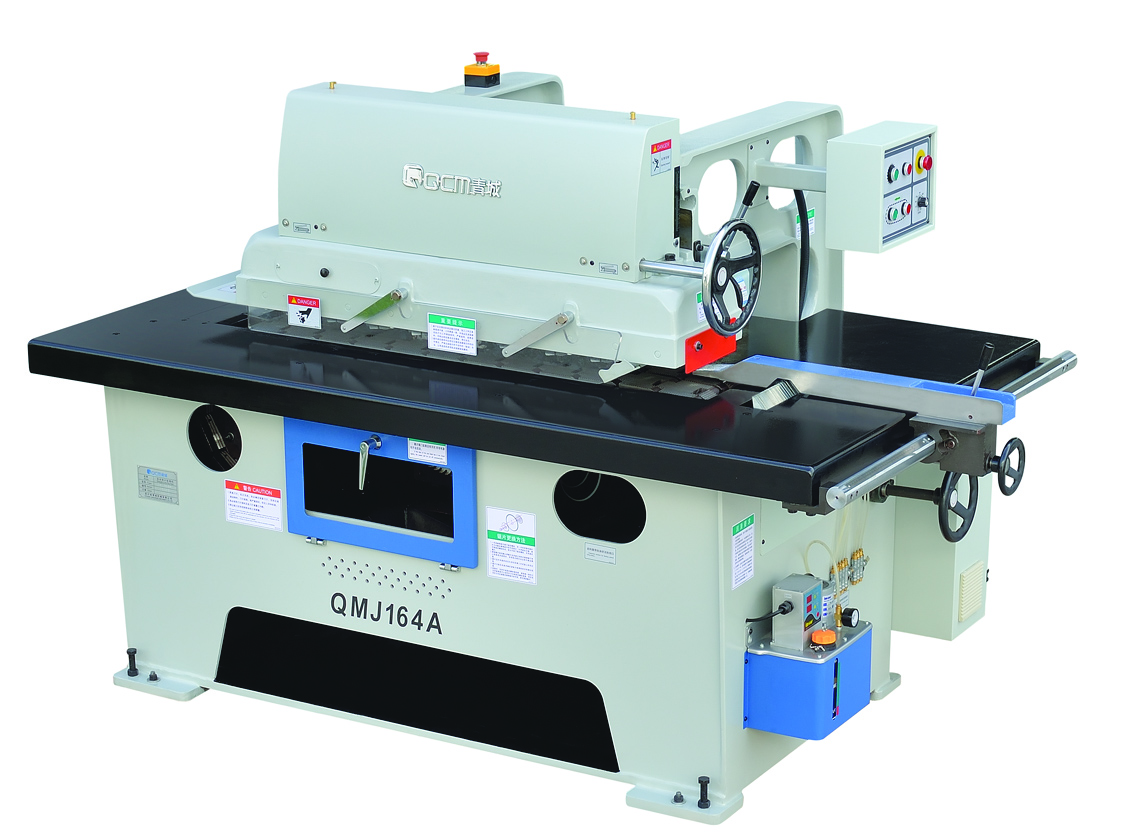

Solid wood machinery

Overview

Max. working thickness……………………………….120mm

Max. blade dia…………………………………455mm(18″)

Min. blade dia…………………………………355mm(16″)

Feeding speed…………………………………..5～24m/min

Spindle speed……………………………………3000r/min

Cutting power…………………………..11Kw(15Kw optional)

Feeding power…………………………………………2.2Kw

Blade bore dia……………………………………….50.8mm

Table size………………………….L2000×W1160×H850mm

Throat depth………………………………………….660mm

Dimension……………………………………225×168×155cm

Weight………………………………………………..1750Kg

This machine is with chain track feeding, and the feeding speed controlled by frequency inverter. And we have other models: QMJ164A-T with electric-lifting for pressure roller; QMJ164A-F with inverter for spindle speed.

Note:all above picture and parameter are subject to the real product. We reserve the right to improve our product.
