Overview
|
Item |

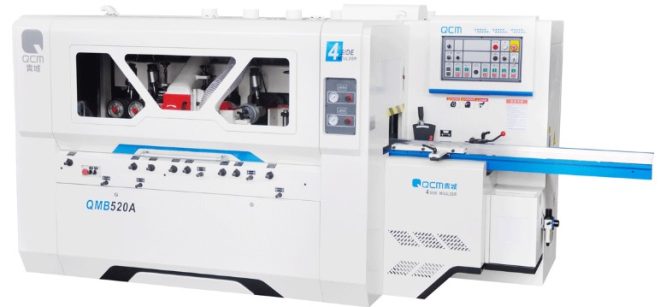

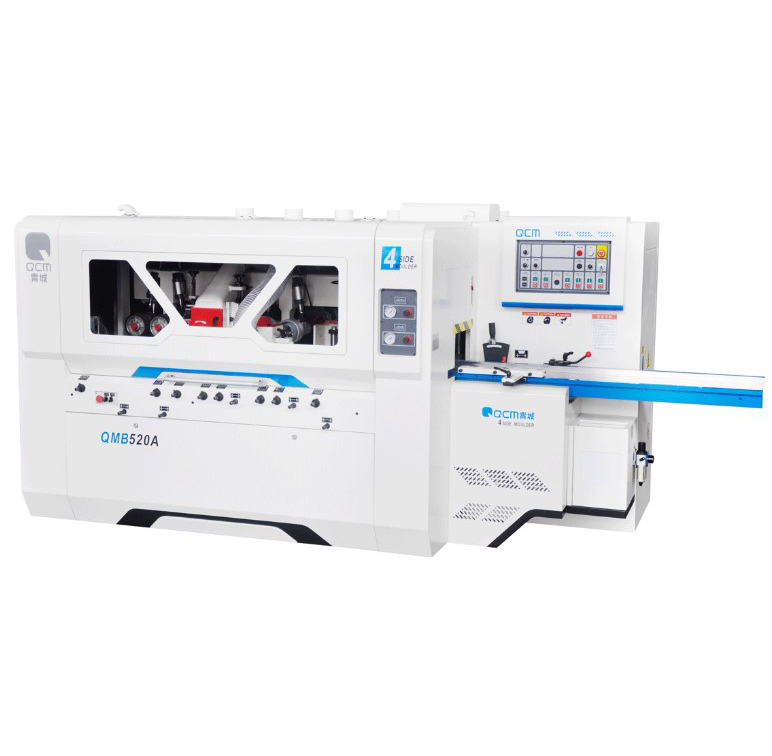

QMB520AT |
|
|
Max.working width(cutter dia.φ125) |
200mm |
|
|
Min.working width(cutter dia.φ125) |
20mm |
|
|
Max.working thickness(cutter dia.φ125) |
125mm |
|
|
Min.working thickness(cutter dia.φ125) |
8mm |
|
|
Min.working length(single) |
630mm |
|
|
Min.working length(continously) |
250mm |
|
|
Max.movement of movable long feeding table |
6mm |
|
|
Max.movement of movable long side fence |
5mm |
|
|
Spindle dia. |
φ40mm |
|
|
Upper feeding wheel dia. |
φ140mm |
|
|
Feeding speed |
8~33m/min |
|
|
Spindle speed |
6800r/min |
|
|
Cutter dia. |
front bottom cutter(planing) |
φ125 |
|
front bottom trimming cutter(D×H) |
φ152×12 |
|
|
vertical cutter |
φ108~φ180mm |
|
|
top cutter |
φ108~φ180mm |
|
|
rear bottom cutter |
φ108~φ200mm |
|
|
Motor power |
front bottom/vertical spindle motor |
Each 5.5kW |
|
top spindle motor |
7.5kW |
|
|
rear bottom spindle motor |
5.5kW |
|
|
feeding motor |
4.0kW |
|
|
beam lifting motor |
0.75kW |
|
|
Air pressure |
0.3~0.6MPa |
|
|
Compressed air requirement |
0.15m3/min |
|
|
Dust outlet |
φ120mm×5 |
|
|
Collecting system air speed |
30~35m/s |
|
|
Collection system air requirement |
150m3/min |
|
|
Overall dimension(L*W*H) |
350×178×175(cm) |
|
|
Weight |
3600Kg |
|
