Overview

• MBZ106D is a heavy-duty single-side woodworking press planer with four-sided columns for the workbench. Its processing width is 630mm, The processing thickness is 300mm, and the feeding speed is 5-18m /min. Its heavy base and bed structure, under the work roller is active The feeding roller adopts frequency conversion speed regulating mechanism, and the fixed thickness adopts CNC lifting. With stable machine performance, high precision, smooth feeding, Strong, the advantages of good processing quality.

Technical parameter

1. Max. working width…………………………………………630mm

2. Working thickness……………………………………….3~300mm

3. Min. Working length…………………………………………300mm

4. Feeding speed…………………………………………..5~18m/min

5. Max. Cutting depth……………………………………………..8mm

6. Cutter dia……………………………………………………..125mm

7. Spindle speed……………………………………………5000r/min

8. Power         cutter motor……………………………….7.5kW

feeding motor………………………………1.5kW

table lifting motor………………………..0.37KW

9. Dust outlet dia.………………………………………….…..….Φ150mm×2

10. Overall dimension(L*W*H)………………….115×130×152cm

11. Weight………………………………………………………1250Kg

This machine is with digital display for height, and with 4 screw rods for table lifting. Having one sectional infeed roller is in front of cutter.

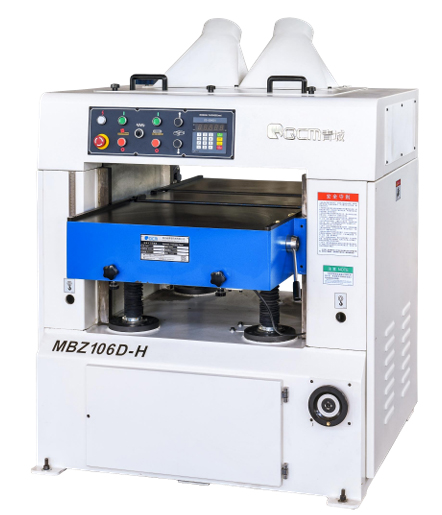

Model MBZ106D-H with spiral cutter head, MBZ106D with straight blade cutter head.

Note:all above picture and parameter are subject to the real product. We reserve the right to improve our product.
